Product Outline

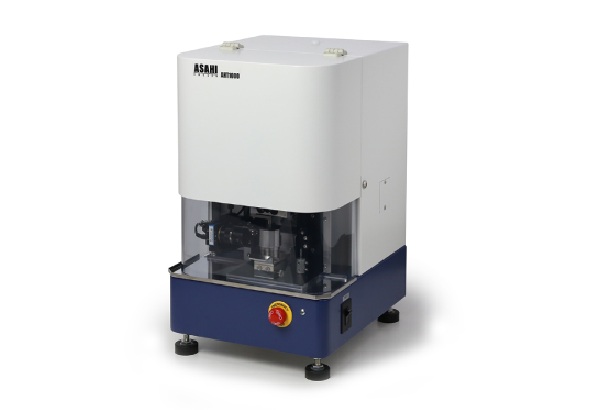

AHT1000 is a device that records changes in load when automatically sampled granules are crushed at a constant speed. Simultaneously measure and record the crushing point and particle size of the granules.
By adopting a simple mechanism, the processing time per measurement from sampling to cleaning is greatly reduced, and many samples can be extracted to obtain reliable measurement results.
In addition, since it is equipped with a CMOS camera, you can visually check the crushing process.
Features
Automated hardness measurement
Simply place the sample in the sample cup and set it in the device, and the specified number of continuous measurements can be performed automatically (up to 50 points).
Extract highly accurate data
Multiple filtering functions invalidate sampling error data and extract and analyze only reliable data.
High safety
A shutter cover that automatically closes when the device operates. With emergency stop switch and overload error function.
High maintainability
Comes with a special cup to receive the sample after measurement. Cleaning brush can be easily removed. Comes with a convenient tray for cleaning scattered powder

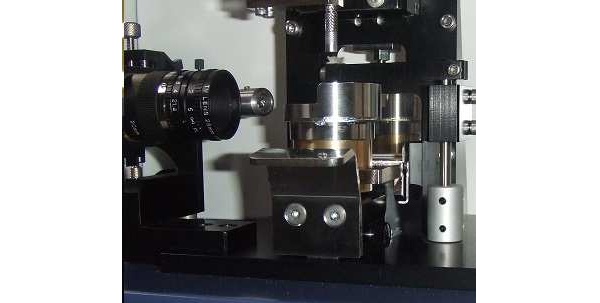

Equipped with CMOS camera
Recorded as an image of the process from the start of pressurization to crushing with an image taken by a CMOS camera.

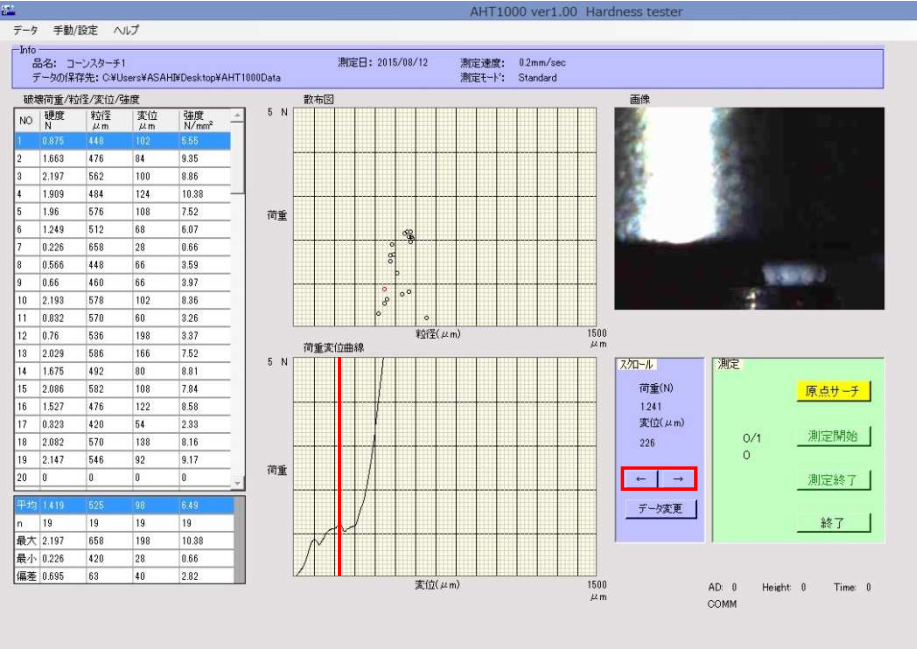

The curve graph of load and displacement is displayed at the same time.
User-friendly measurement data
Aggregation and distribution charting by a dedicated application.
It is possible to output the load displacement curve as a CSV file.
