Product Outline

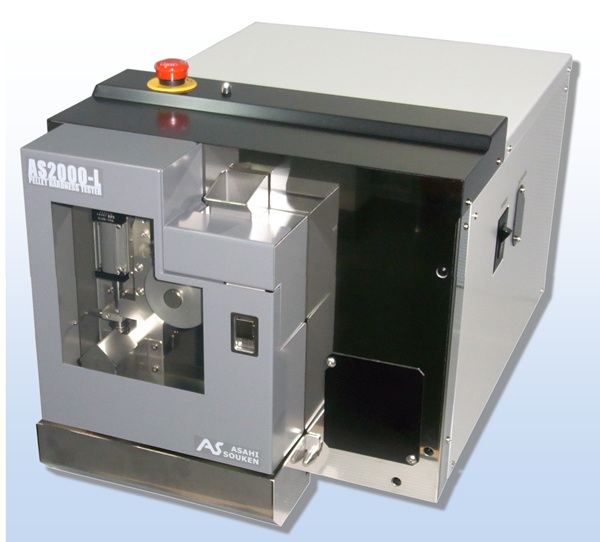

The Pellet Hardness tester AS2000-L is measures hardness of the spherical granulation （pellet） such as carbon black.
Measurement data is displayed for the PC, and totalization data is possible to output from the printer. It conforms to ISO 8942, ASTM D5230.
Features
Fast measurement
Compared with the conventional model, the measurement lead time has been reduced to about half. *about 10 – 15 sec/piece (depend on the conditions)
Hardness and pellet size measurement of spherical sample
Simultaneous measurement of hardness and the pellet size of the granulation properties of the carbon black.
High Precision
Improve the measurement accuracy by the adoption of the Z-axis actuator.
Safety Device
Starting is possible only if the cover is equipped.

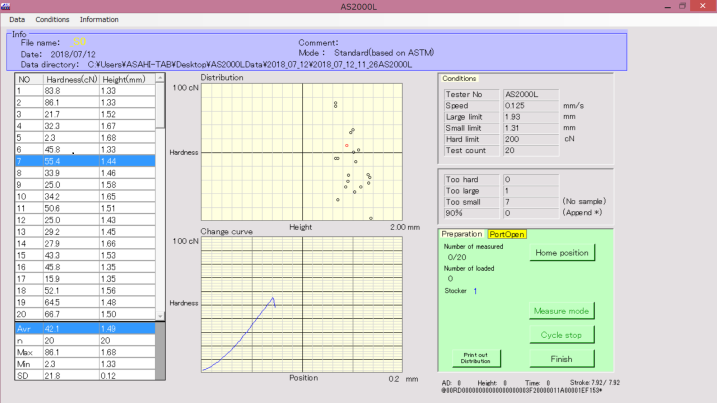

Two data management
You can store two types of data: pellet size distribution chart and individual load curve data. *Data format is CSV
Measurement condition
It corresponds to measurement conditions of ASTM standard, and can be called with one
Operation Video
Asahi’s pellet hardness tester AS-2000L demonstration video. Introducing whole process.
